Alignment
Printer Alignment Test Page
Use grids and borders to find crooked text, shifted printheads, or margins that print unevenly. Best for fixing alignment after installing, moving, or servicing a printer.
Alignment test page
Printer Line Test Page
Fine lines running horizontally and vertically reveal banding, broken lines, and printhead misalignment.
Live preview — the printed page is generated at 300 DPI
Alignment
In the print dialog choose Actual size / 100% and turn off “Fit to page”.

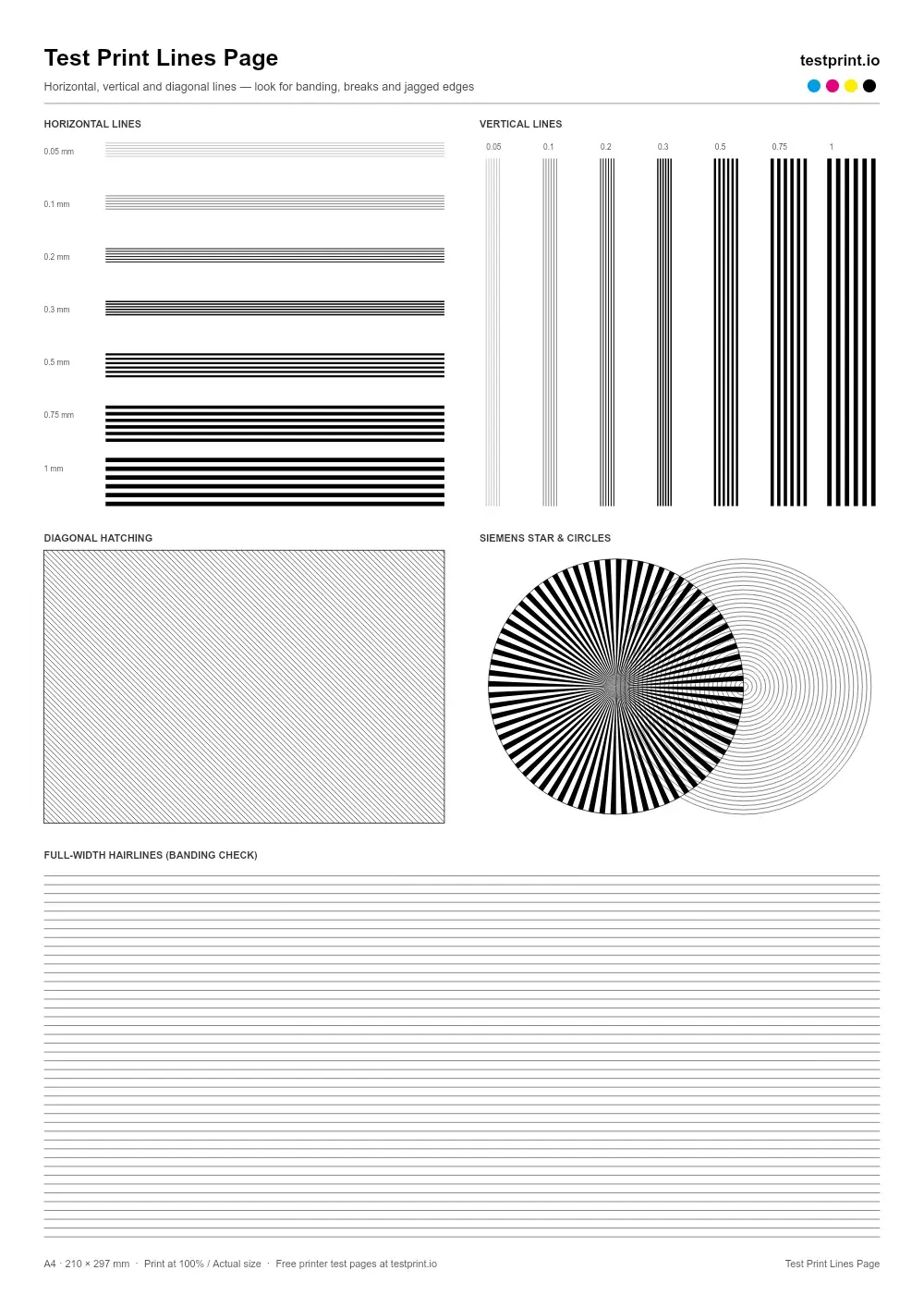

What this page checks
- Horizontal and vertical lines from 0.05 mm to 1 mm
- Diagonal hatching
- Siemens star and concentric circles
How to Print the Test Print Lines Page
- 1
Prepare the printer
Check ink or toner levels, connect the printer by USB or Wi-Fi, and load clean paper that matches the selected size.
- 2
Print or download
Click Print to open your browser's print dialog, or download the PDF and press Ctrl + P (Cmd + P on Mac).
- 3
Use actual size
Select your physical printer, set scale to 100% / Actual size, and turn off Fit to page, grayscale and draft modes.
- 4
Inspect the sheet
Let the ink dry, then check it under neutral light. Keep it to compare with a reprint after any fix.
Reading Your Results
Gaps or white streaks
Usually clogged nozzles (inkjet) or dirty rollers.
Faint or washed-out areas
Low ink or toner, or draft / eco mode switched on.
Doubled or blurry lines
Printhead misalignment — run an alignment routine.
Wrong or shifted colors
Calls for printhead alignment and color calibration.
